We provide customized in-process services for dimensional control by Precise 3D dimensions Measurements, Alignment, Levelling, Marking, Guided Positioning. This is very productive support in Big structures- foundations, components, assemblies, machines Installations & positioning.
In Industrial applications, while using old or used machines, it is seen that several times in operations the auxiliaries & prime movers gets breakdown, due to misalignment & absence of benchmarks which results in loss of Important Production time and repair cost. By using our expertise DC services, our clients have eliminated these uncertainties in their working operations.

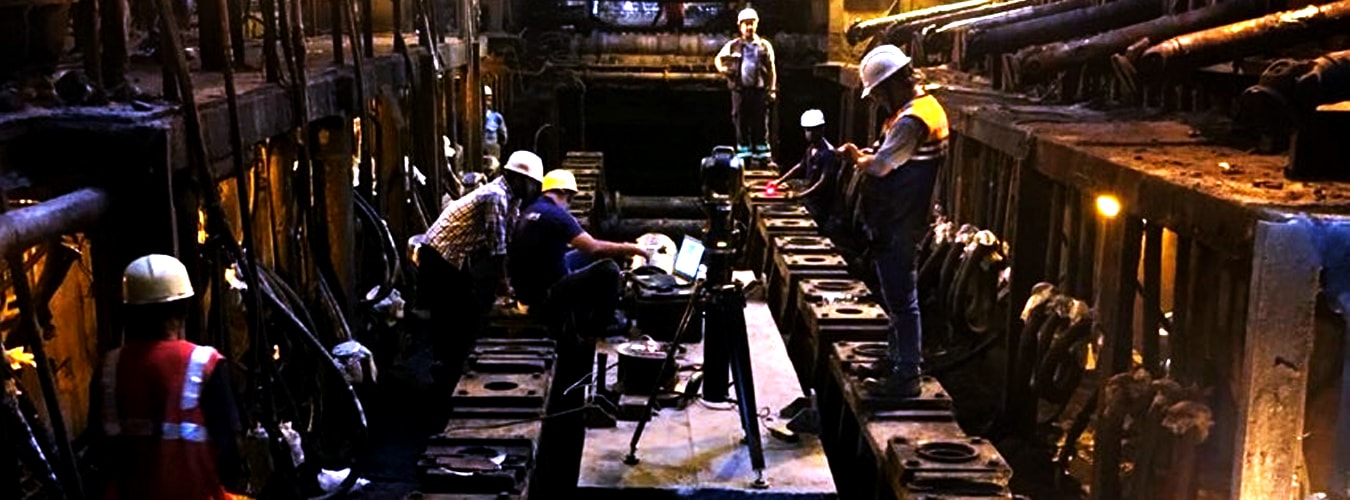

3D Measurements

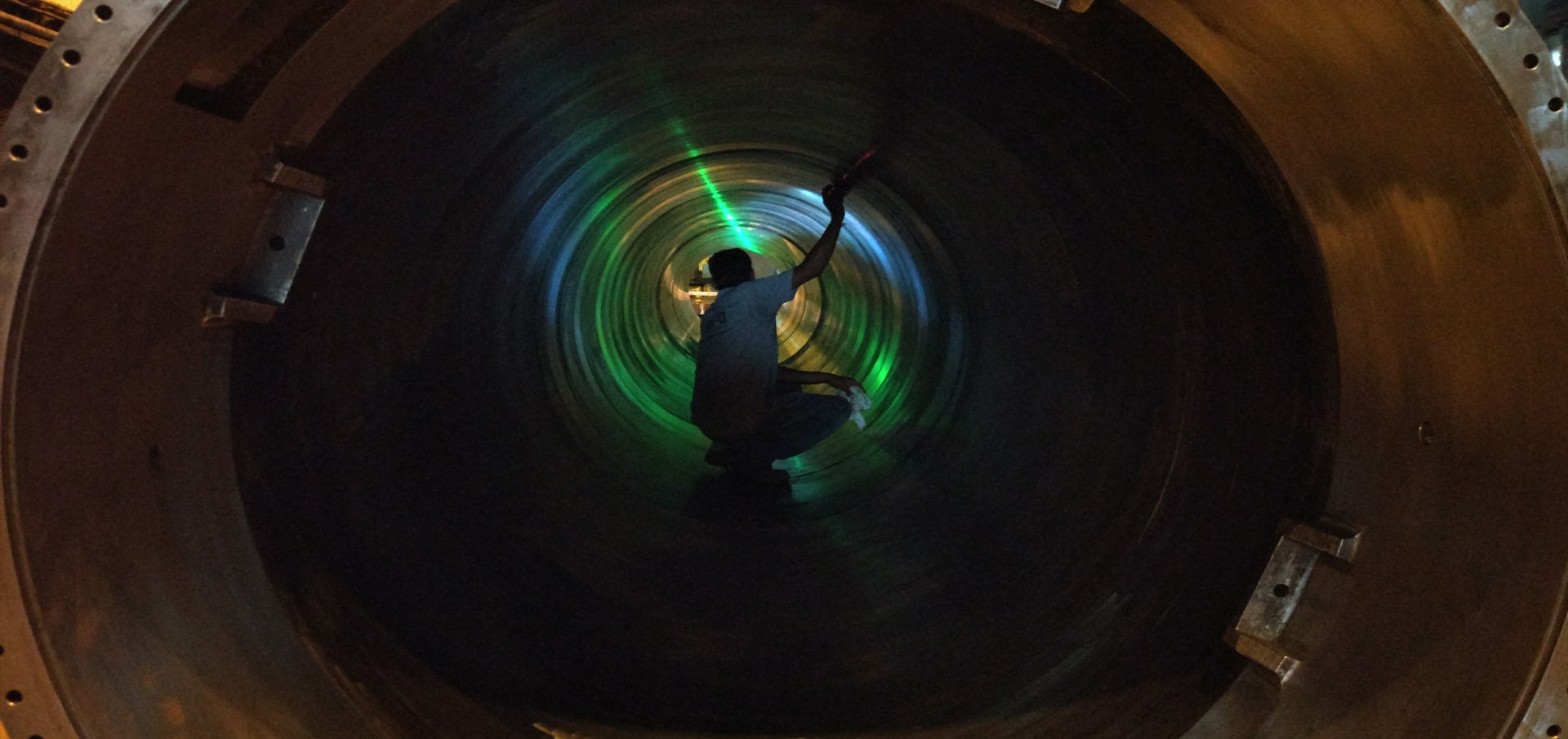

Ovality & Concentricity
Centering Inspection & Guidance
Verticality – Elevation Checks & Adjustments
Marking & 3 Dimensional Positioning
Level Inspection & Adjustment Guidance
GD&T Check

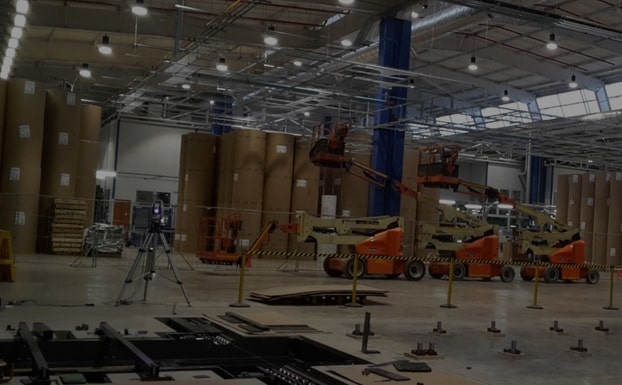

INSTALLATION & ERECTION FOR NEW PROJECTS

BENCHMARKING -Transformation of Civil Benchmarking to Precise Mechanical Coordinates
Civil Construction's Level Verification & Corrections
Precise Alignment
Final Inspection & Reporting

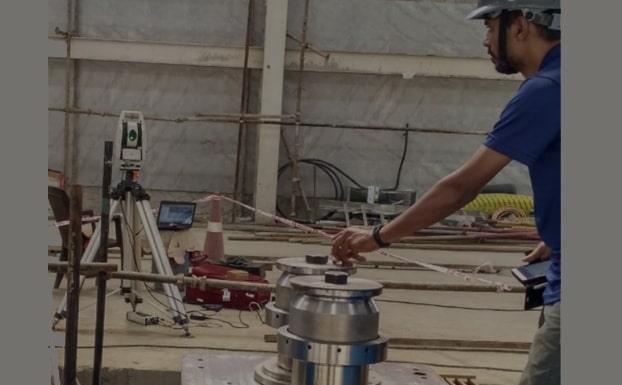

MAINTENANCE

3D Inspection of Equipment
Mechanical Survey of Old Equipment for revamping
Real Time Guidance for Part Replacements
Equipment Misalignment Verification & Rectification

INSPECTION

Large Part Inspection
Big Structure Alignment Guidance
Ovality & Concentricity Inspection
Level Inspection
GD&T Check

Our In-Process Dimension Control Services include precise 3D Measurements, Alignment, Levelling, Elevation checks, Real-time guided positioning & markings which are very useful in big objects’ or structures’ overhauling, Maintenance, Installations, erections & assemblies.

HOT ROLL STRIP – Verticality Elevation & Flatness Check
SHEAR & BENDING ROLLERS – Positioning & Alignments
CSP– Center Line Alignment Check
VERTICAL CASTER – Alignment Check & Corrections
SKIN PASS MILL – Roller Position & Center Line Alignments
PLATE MILL HOUSING – Alignments, Positioning & Parallelism
CCR – Benchmarking, Positioning & Alignments
RECOILING MILL – Positioning & Markings

THE BENEFITS OF OUR DC PROCESS OVER TRADITIONAL METHODS

Incorrect alignments result in vibrations or wear & tear on supports like bearings, belts and couplings. By uses of our Dimension control expertise, we can save potential serious consequences and ensure precise alignments, saving min 30-40% time over conventional methodology

High accuracy systems are used with range starting from 0.01mm tools are used. These systems work in three dimensions and provides inputs in all three in comparison to conventional tools which provide single direction value.

We can measure all possible geometric parameters (linear, horizontal, vertical, with a single measurement (Also straightness, flatness, diameter etc. are analyzed.)

We work with absolute coordinate system. There is high flexibility in our working with minimized error as we work with absolute coordinate systems. The benchmarks set, help us to work in multiple directions by multiple positions hence, there is high flexibility in working with minimized error.

We provide customized solution with real time guided assistance(live measurement parameters on PC screen), which enables the user to watch, build and make corrections. This method is way superior to conventional method, where all measurements are done manually that makes the process complicated and tiresome.

We have proven time and time, with our expertise, projects can be completed in 40-50% less time and 10 times more accuracy over conventional working.

For a range of 200-500 m, alignments can be done within 0.5 to 1mm accuracy as compared to conventional 10 to 20mm accuracy.
