Reverse Engineering

Our scanning systems are used to digitize an object and create 3D model and extract manufacturing drawings.

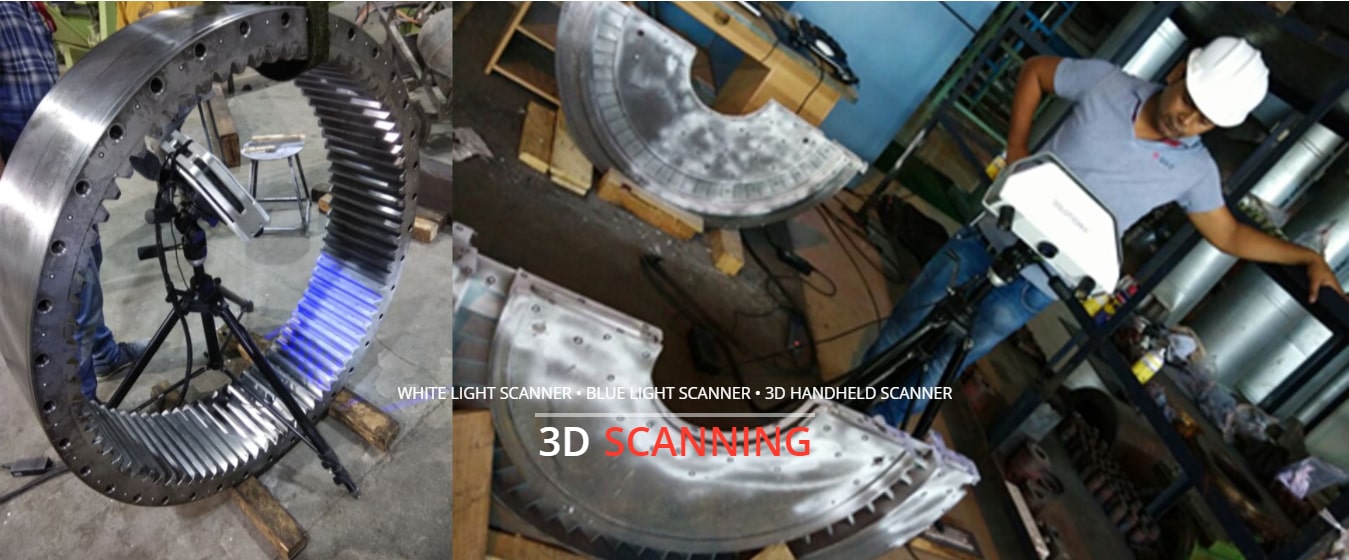

When critical spare parts/ components are unavailable, SixD has expertise to create design & manufacturing drawings for such components through reverse engineering process. We provide on-site mapping of physical parts by our various 3D scanner systems (accuracy range upto 0.01 mm).

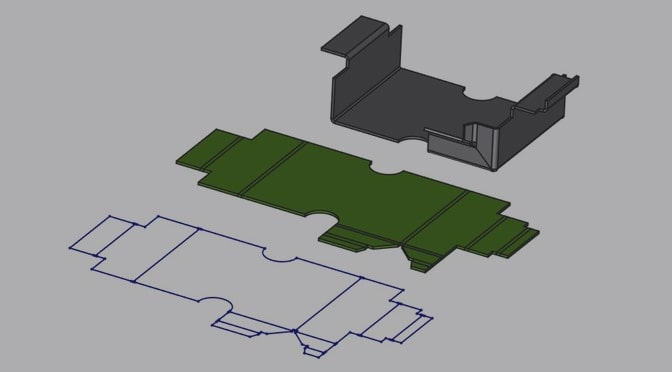

3D CAD Modelling

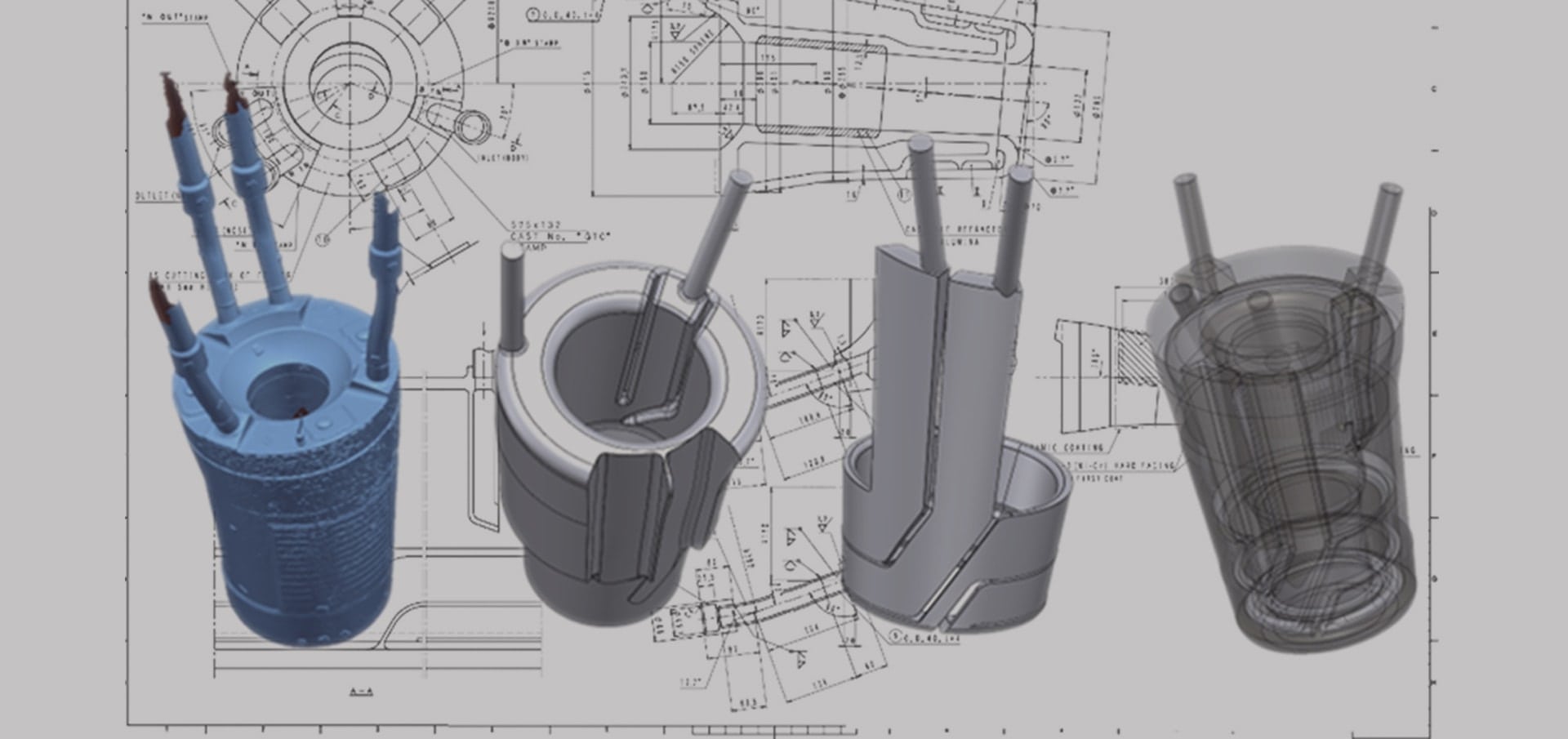

2D Engineering Drawing Development
3D CAD to Part Inspection
2D Drawing to Part Inspection

Very often spare parts for older machines are not available In the market or they can only be obtained as complete modules.

We provide a way to generate CAD files and update or create as-built documentation. Reverse engineering allows users to quickly digitize a part or object and create a fully surfaced CAD model which can then be used to reproduce an item.

Our Scanners

We have complete range of 3D scanners for the point cloud /3D digitization for the physical parts. These systems are portable and can be used onsite.

BLUE LIGHT SCANNER
WHITE LIGHT SCANNERS
HANDHELD 3D LASER SCANNER
3D LASER SCANNER
HAND HELD 3D SCANNER

3D CAD MODELLING

Product Design & Development | 2D Drawing to 3D Model Generation

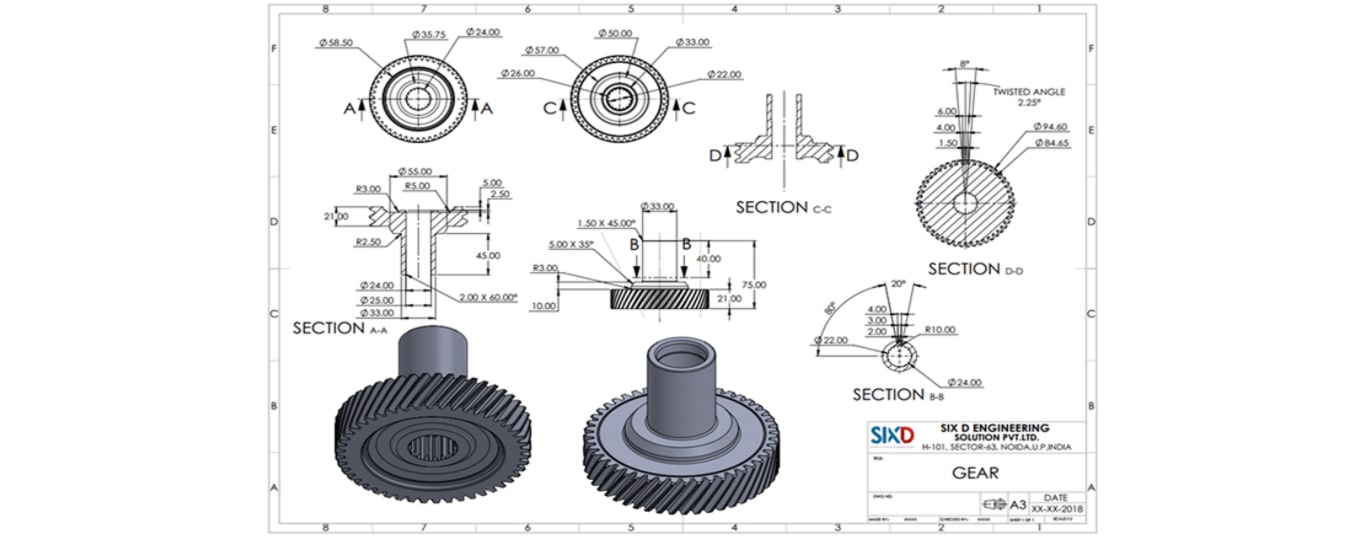

2D Manufacturing Drawing Development

Tolerance Analysis | Standards Studies | Design Performance Study

3D scanning measurement solutions are ideal for reverse engineering applications for in the development of CAD model & Manufacturing Drawing of critical parts in Automotive, Consumer Goods, Power Generation, Cement, Heavy Engineering, Aerospace Industries.Our RE services are used into Casting & Forging, Mould & Die, Metal Fabrication, etc.

INSPECTION

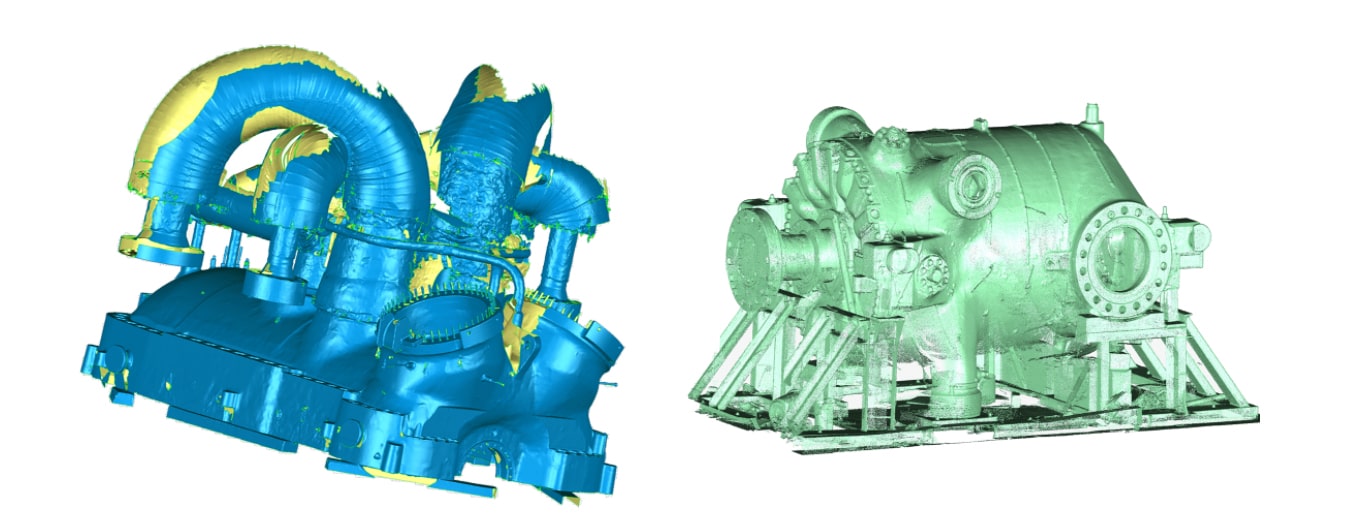

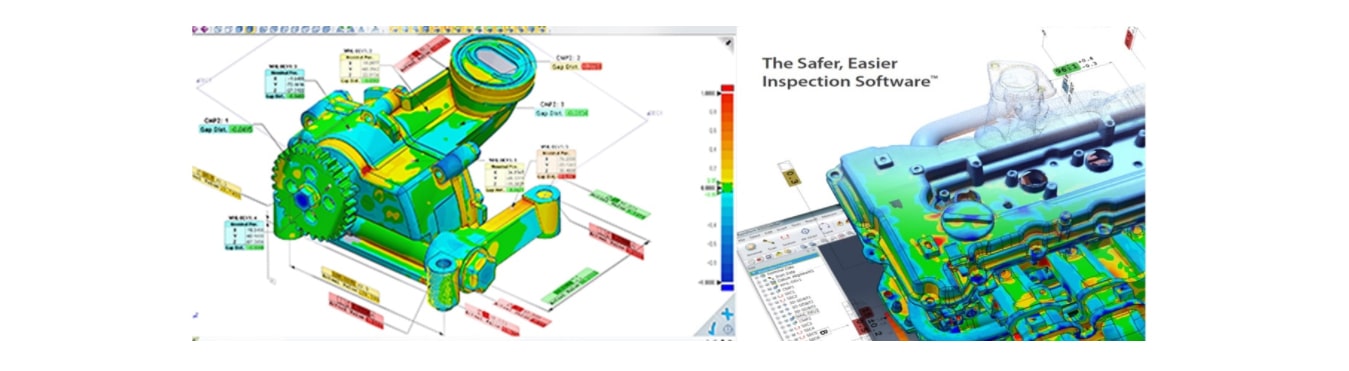

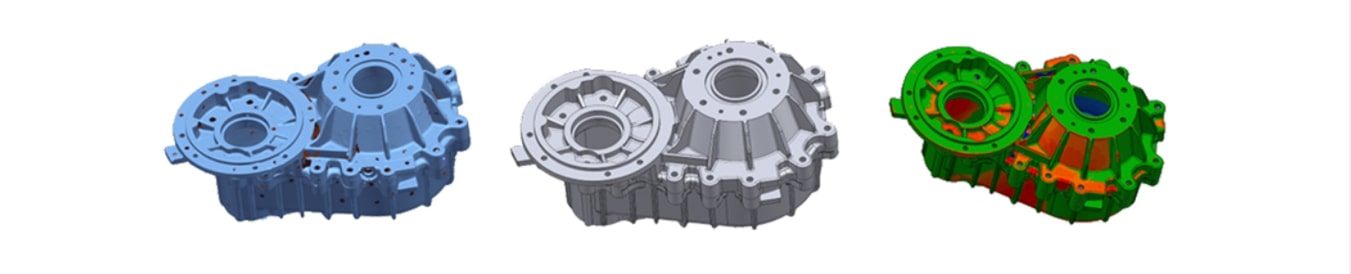

Cad to Part Comparison | Cad Inspection | Distortion Analysis

Industrial Plant Machinery

Critical Parts | Spare | Equipment | Object

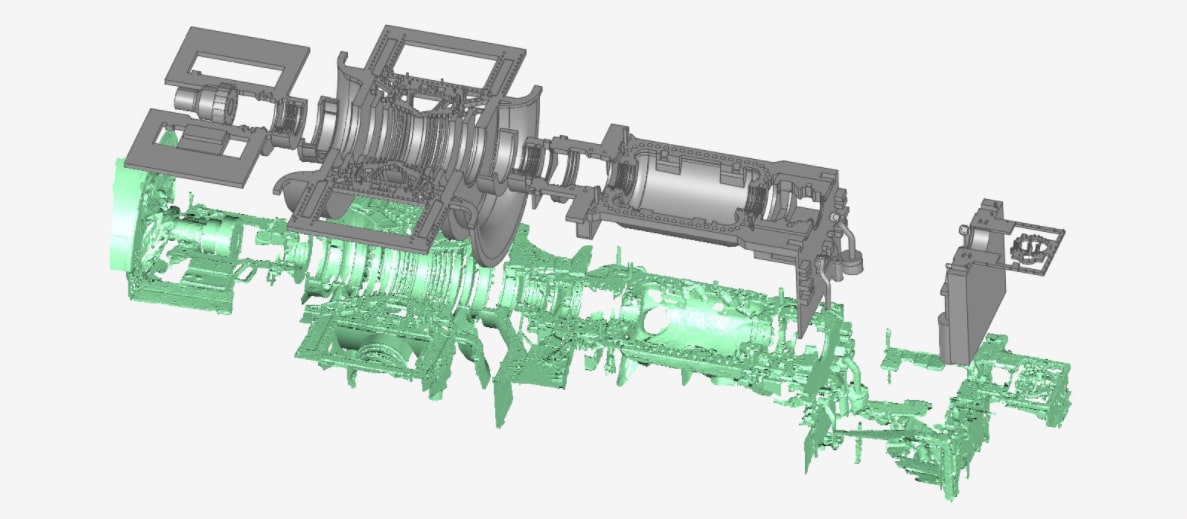

In Engineering Sectors like Power, we are developing Critical parts/objects design & manufacturing drawings for components from Boiler, Turbine & its auxiliaries, Ash Handling & Coal Handling Plant which helps in cutting the cost for spares indigenization & maintenance of equipment.

BLUE LIGHT SCANNER

The Most User-friendly 3D Scanner

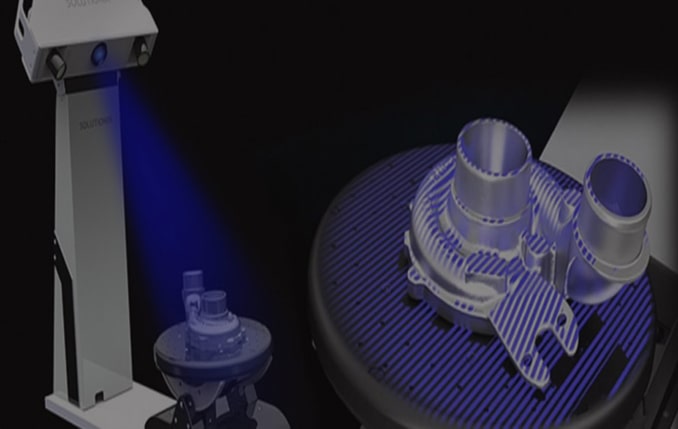

The Solutionix C500 is an industrial 3D scanner optimized for scanning small- to medium-sized objects. With dual 5.0MP cameras, the C500 provides excellent data quality at a high resolution. In addition, the product’s high level of user friendliness makes the scanner even more attractive.

Automatic Scanning and Active Synchronization
Automatic Calibration
Optimized 3 Axis Automatic Turntable
Detachable Scanner Head
No Targets or Manual Alignment Needed
Flexible Scanning Volume

WHITE LIGHT SCANNERS

High-speed, High-quality Scanning of Small Objects
The Solutionix D-series is a range of fully automated tools specifically designed to scan small models. The technical specifications of the D-series are calibrated to meet the high level of detail required by both industrial and non-industrial users in various applications ranging from jewellery to cultural artefacts.

Position the Object and Start Scanning
Advanced Precise Colour Texture
Quality Rapid 3D Scanning of Small Objects
Automatic Scanning & Active Synchronization
Automatic Calibration
Ease of Scanning Path Generation

HANDHELD 3D LASER SCANNER

Optical tracker delivers the fast, repeatable highest accuracy over the largest measurement volume of any portable optical CMM in its class

3D LASER SCANNER

Perform freeform, non-contact 3D laser scanning of complex surfaces in 6DOF to create accrate 3D models for industrial inspection and reverse engineering

Increase scanning productivity by 300%
Harness the power of blue laser technology for part inspection

HAND HELD 3D SCANNER

The Solutionix C500 may be used in quality inspection or reverse engineering because of its ability to acquire high-precision scan data easily and quickly. Its added functionality, to acquire high-resolution color information, makes it easy to utilize it in 3D printing, CG, and web-based real 3D data fields.
