3D SCANNING • 3D CAD MODELLING • 2D MANFACTURING DRAWING • INSPECTION

VR & AR Industrial Solutions

Overview

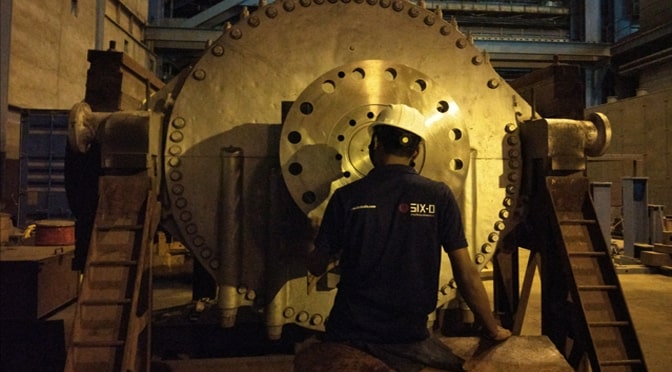

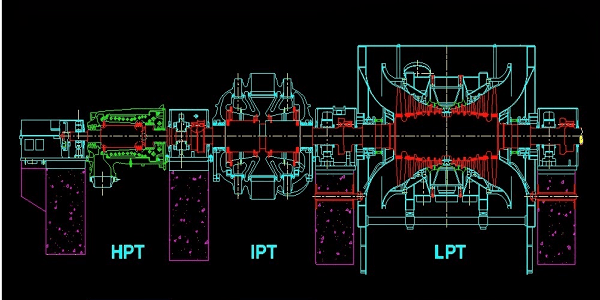

Our developed Digital Profile Mapping (DPM) is a customized solution which enables Turbine Overhauling & Maintenance team to analyze turbine in-process important activities with real-time guided results to make better and faster decisions. DPM saves productive days of total schedule of the turbine overhauling and at the same time accurate results. Also, conventional methods like blue ink check, frequent bolt tightening and loosening, unguided scrapping, pot levelling etc. are eliminated and frequent handling of the heavy components is highly reduced.

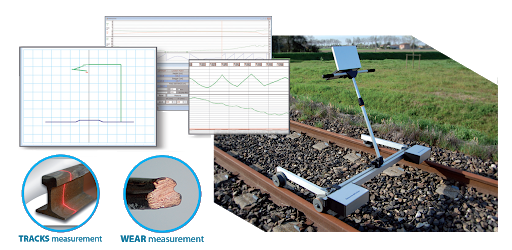

CATENARY MEASUREMENT

ARTEC RAY – A NEW LONG-RANGE LASER 3D SCANNING SOLUTION
Discover this high accuracy long-range laser 3D scanner designed for fast and seamless 3D data capture of large object

COUPLING FACE RUNOUT

The Most User-friendly 3D Scanner
The Solutionix C500 is an industrial 3D scanner optimized for scanning small- to medium-sized objects. With dual 5.0MP cameras, the C500 provides excellent data quality at a high resolution. In addition, the product’s high level of user friendliness makes the scanner even more attractive.

CASING PARTING PLANE MATCHING

High-speed, High-quality Scanning of Small Objects
The Solutionix D-series is a range of fully automated tools specifically designed to scan small models. The technical specifications of the D-series are calibrated to meet the high level of detail required by both industrial and non-industrial users in various applications ranging from jewellery to cultural artefacts.

OVALITY MEASUREMENT

We have successfully carried out DPM procedure at NTPC Dadri (500MW Unit 5 & 6, 210 MW Unit 2), (NTPC Sipat 660 MW Unit 1,2,&3), NTPC-Korba(210 MW Unit 2), TATAPOWER, ACB INDIA-SPECTRUM(50MW Unit-I), NTECL Vallur (500 MW Unit 3), TAQA-GE Chennai

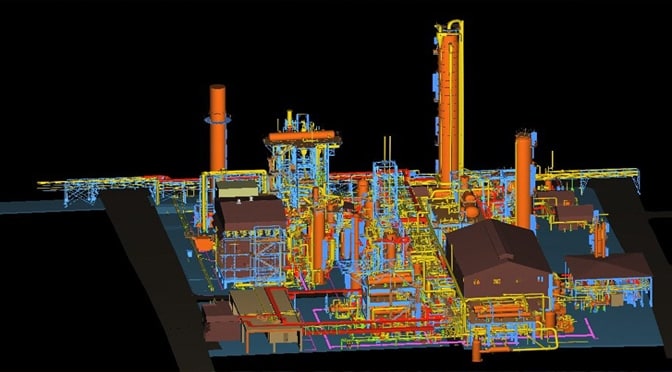

AS-BUILT MAPPING

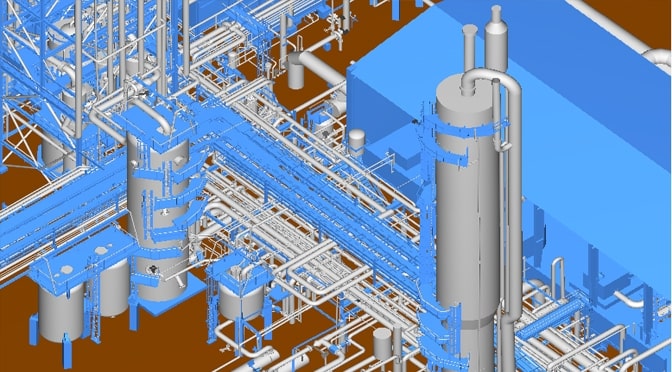

We provide best quality 3D Laser Scanning of old & congested plants, structure, piping &supports for As-Built primitive MODELLING& GA layouts drawings. By incorporating specifications and P& ID details the ISO metric drawing with BOM can be extracted or delivered. These service will be good help in RENOVATION, REVAMPING, CAPACITY ENHANCEMENT DESIGN STUDY, MODERNIZATION & EQUIPMENT SHIFTING & REPLACEMENTS.

We have successfully carried out DPM procedure at NTPC Dadri (500MW Unit 5 & 6, 210 MW Unit 2), (NTPC Sipat 660 MW Unit 1,2,&3), NTPC-Korba(210 MW Unit 2), TATAPOWER, ACB INDIA-SPECTRUM(50MW Unit-I), NTECL Vallur (500 MW Unit 3), TAQA-GE Chennai

We provide best quality 3D Laser Scanning of old & congested plants, structure, piping &supports for As-Built primitive MODELLING& GA layouts drawings. By incorporating specifications and P& ID details the ISO metric drawing with BOM can be extracted or delivered. These service will be good help in RENOVATION, REVAMPING, CAPACITY ENHANCEMENT DESIGN STUDY, MODERNIZATION & EQUIPMENT SHIFTING & REPLACEMENTS.

Our Experiences

We ensure the best Quality, Timely delivery, and Safety in all our workings.

Avatar DIMENSION CONTROL
Avatar AS-BUILT ENGINEERING
Avatar PLANT ENGINEERING SERVICES
Avatar DIGITAL PROFILE MAPPING

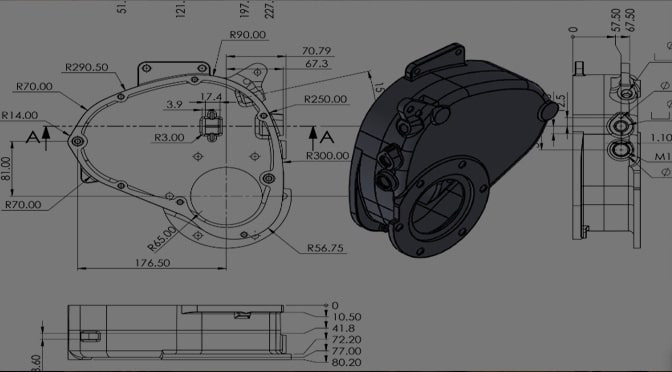

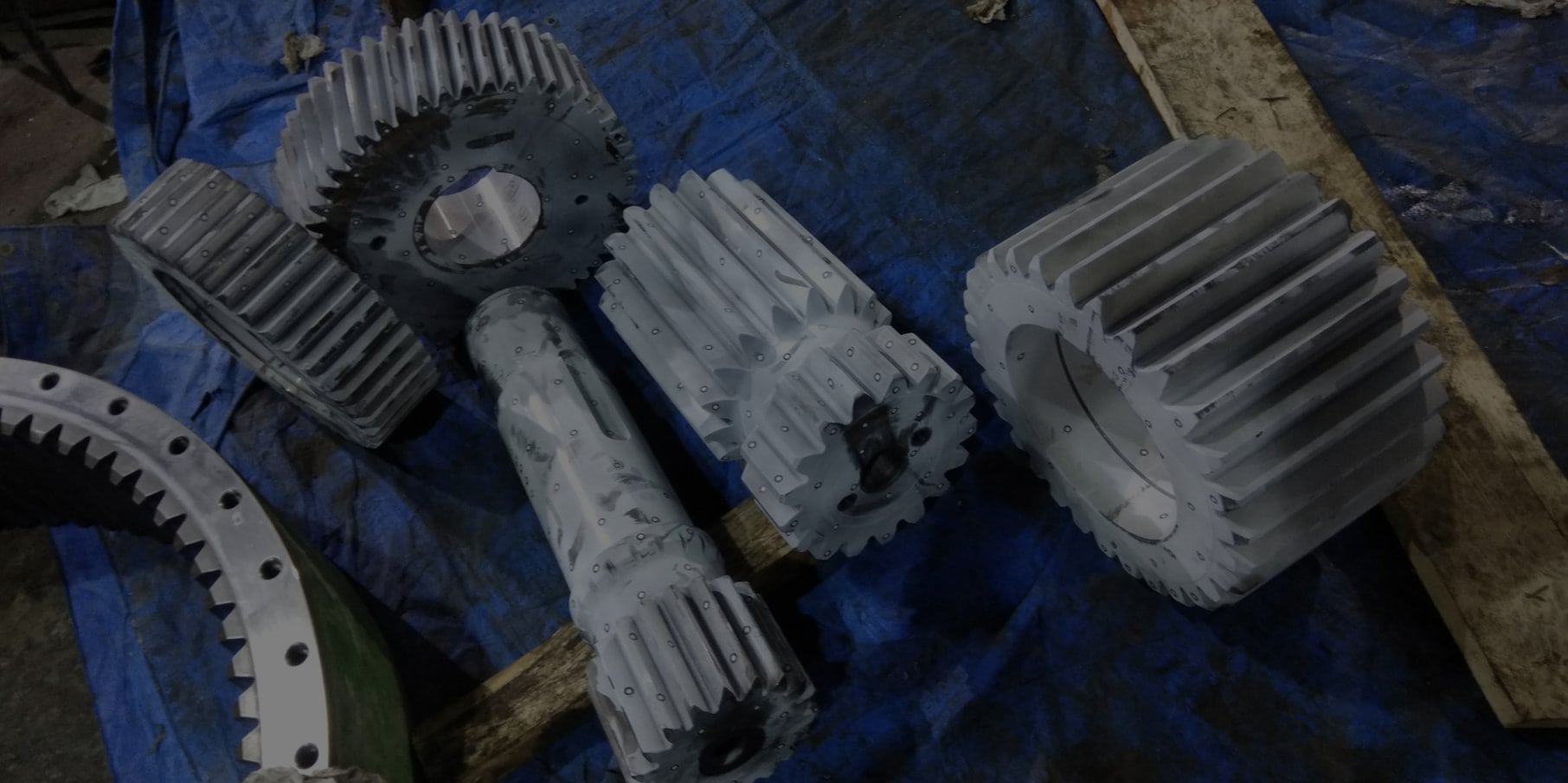

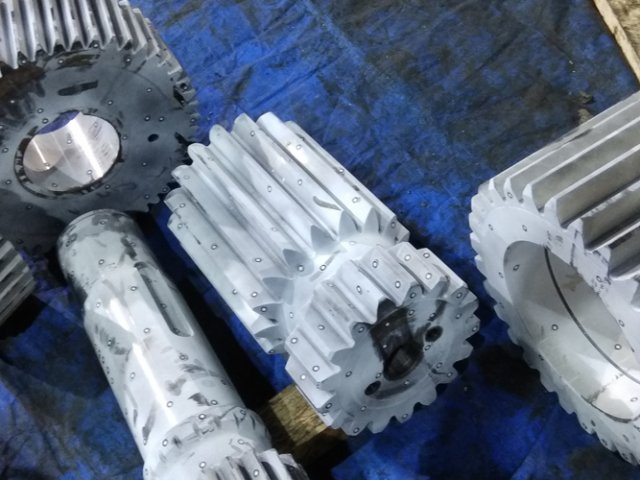

Avatar REVERSE ENGINEERING
Avatar miscellaneous Industrial Services
banner

Our worldwide presence ensures the timeliness, cost efficiency and compliance adherence required to ensure your production timelines are met.
