Role of Pipe Racks in Industrial Plants
Pipe racks are structural frameworks that carry piping connecting process units and equipment across an industrial facility. In addition to pipes, they often support electrical trays, instrument cables, and, in some cases, air coolers. While steel is the most common construction material, pipe racks may also be built using concrete or composite steel–concrete structures depending on project requirements.
Because piping and structure are closely interconnected, pipe rack design must be approached as a combined piping–structural exercise rather than as isolated disciplines.
Role of Pipe Racks in Industrial Plants
Pipe racks are structural frameworks that carry piping connecting process units and equipment across an industrial facility. In addition to pipes, they often support electrical trays, instrument cables, and, in some cases, air coolers. While steel is the most common construction material, pipe racks may also be built using concrete or composite steel–concrete structures depending on project requirements.
Because piping and structure are closely interconnected, pipe rack design must be approached as a combined piping–structural exercise rather than as isolated disciplines.
Role of Pipe Racks in Industrial Plants
Pipe racks are structural frameworks that carry piping connecting process units and equipment across an industrial facility. In addition to pipes, they often support electrical trays, instrument cables, and, in some cases, air coolers. While steel is the most common construction material, pipe racks may also be built using concrete or composite steel–concrete structures depending on project requirements.
Because piping and structure are closely interconnected, pipe rack design must be approached as a combined piping–structural exercise rather than as isolated disciplines.
Inputs Required for Pipe Rack Design
A well-executed pipe rack design begins with accurate and complete inputs. These typically include P&IDs, process flow diagrams, plot plans, layout and client specifications, fire protection requirements, rack construction materials, and details of nearby equipment. These inputs define routing constraints, safety clearances, and load considerations that directly influence rack dimensions and layout.
Design activities usually start by defining rack width, column spacing, and elevation levels, followed by the preparation of a line routing diagram to visualize preliminary pipe paths across the plant.
Inputs Required for Pipe Rack Design
A well-executed pipe rack design begins with accurate and complete inputs. These typically include P&IDs, process flow diagrams, plot plans, layout and client specifications, fire protection requirements, rack construction materials, and details of nearby equipment. These inputs define routing constraints, safety clearances, and load considerations that directly influence rack dimensions and layout.
Design activities usually start by defining rack width, column spacing, and elevation levels, followed by the preparation of a line routing diagram to visualize preliminary pipe paths across the plant.
Inputs Required for Pipe Rack Design
A well-executed pipe rack design begins with accurate and complete inputs. These typically include P&IDs, process flow diagrams, plot plans, layout and client specifications, fire protection requirements, rack construction materials, and details of nearby equipment. These inputs define routing constraints, safety clearances, and load considerations that directly influence rack dimensions and layout.
Design activities usually start by defining rack width, column spacing, and elevation levels, followed by the preparation of a line routing diagram to visualize preliminary pipe paths across the plant.
Determining Pipe Rack Width
The pipe rack width is established using the line routing diagram, which represents the cross-section of all pipelines, including pipe sizes, insulation thickness, and line identification. This information helps group lines based on service or fluid type and ensures sufficient space for installation, maintenance, and future expansion. Accurate width allocation prevents congestion and minimizes routing conflicts during construction.
Determining Pipe Rack Width
The pipe rack width is established using the line routing diagram, which represents the cross-section of all pipelines, including pipe sizes, insulation thickness, and line identification. This information helps group lines based on service or fluid type and ensures sufficient space for installation, maintenance, and future expansion. Accurate width allocation prevents congestion and minimizes routing conflicts during construction.
Determining Pipe Rack Width
The pipe rack width is established using the line routing diagram, which represents the cross-section of all pipelines, including pipe sizes, insulation thickness, and line identification. This information helps group lines based on service or fluid type and ensures sufficient space for installation, maintenance, and future expansion. Accurate width allocation prevents congestion and minimizes routing conflicts during construction.

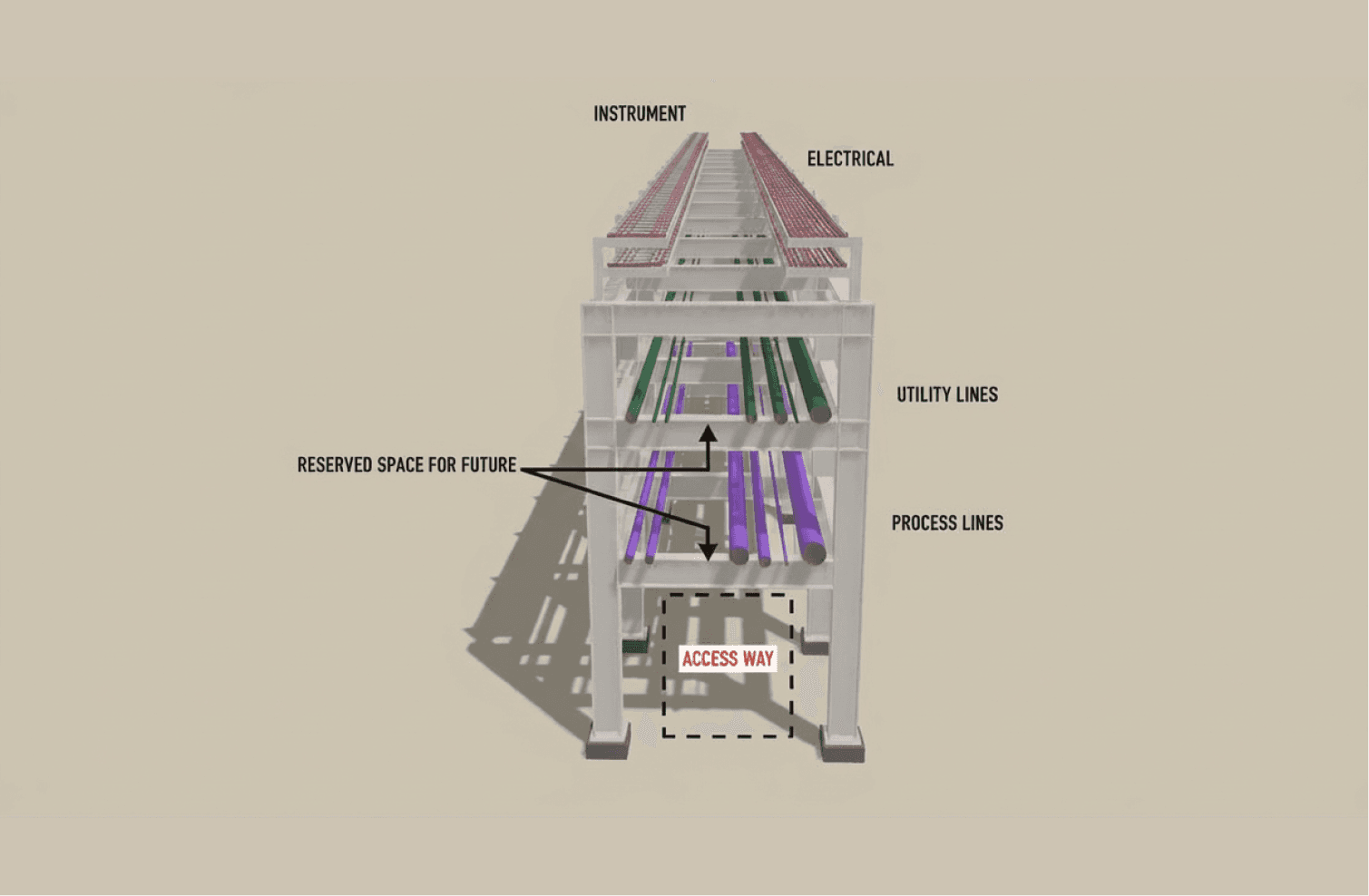

Establishing Pipe Rack Levels and Elevations
Pipe rack elevation is governed by access, safety, and routing requirements. The minimum clearance under a pipe rack is typically set at 3600 mm to allow passage of vehicles such as cranes or cherry pickers. Vertical spacing between rack levels and entry or exit elevations is determined based on pipe diameter and bend geometry, with typical exit level spacing ranging from 800 mm to 1200 mm.
Establishing Pipe Rack Levels and Elevations
Pipe rack elevation is governed by access, safety, and routing requirements. The minimum clearance under a pipe rack is typically set at 3600 mm to allow passage of vehicles such as cranes or cherry pickers. Vertical spacing between rack levels and entry or exit elevations is determined based on pipe diameter and bend geometry, with typical exit level spacing ranging from 800 mm to 1200 mm.
Establishing Pipe Rack Levels and Elevations
Pipe rack elevation is governed by access, safety, and routing requirements. The minimum clearance under a pipe rack is typically set at 3600 mm to allow passage of vehicles such as cranes or cherry pickers. Vertical spacing between rack levels and entry or exit elevations is determined based on pipe diameter and bend geometry, with typical exit level spacing ranging from 800 mm to 1200 mm.
